Supplement#
from adjustText import adjust_text
import matplotlib.pyplot as plt
from matplotlib import table
import numpy as np
import pandas as pd
from scipy import signal
import gcsfs
from scipy.signal import detrend
from scipy.stats import linregress
import scipy.signal as signal
import matplotlib as mpl
from statsmodels.api import tsa
import statsmodels.api as sm
import xarray as xr
import zarr
import warnings
warnings.filterwarnings('ignore')
mpl.rcParams['figure.facecolor'] = 'white'
mpl.rcParams['figure.dpi']= 150
mpl.rcParams['font.size'] = 12
Supplemental Figure 1 (S1)#
removed_color = '#2738ad'
volcano_color = '#de1f1f'
ec_data = pd.read_csv('data/ec_data.csv').drop('Unnamed: 0', axis=1)
fig, axs = plt.subplots(1, 2, figsize = (8.5, 4), sharey=True)
axs[0].scatter(ec_data['cox'], ec_data['ecs'], color = volcano_color, marker = '^')
slope, intercept, r, p, se = linregress(ec_data['cox'], ec_data['ecs'])
r_cox_original = r
axs[0].scatter(ec_data['rv_cox'], ec_data['ecs'], color = removed_color, marker = 'o')
slope, intercept, r, p, se = linregress(ec_data['rv_cox'], ec_data['ecs'])
r_cox_rv = r
for i in range(len(ec_data)):
x_i = ec_data['rv_cox'][i]
y_i = ec_data['ecs'][i]
dx_i = x_i - ec_data['cox'][i]
dy_i = 0
axs[0].arrow(x_i, y_i, -1*dx_i, dy_i, linewidth = 0.05)
axs[0].text(0.1, 4.5, 'r='+str(np.round(r_cox_original,2)), color = volcano_color)
axs[0].text(0.25, 2.5, 'r='+str(np.round(r_cox_rv,2)), color = removed_color)
axs[1].scatter(ec_data['nijsse'], ec_data['ecs'], color = volcano_color, marker = '^', label = 'unadulterated\nseries')
slope, intercept, r, p, se = linregress(ec_data['nijsse'], ec_data['ecs'])
r_nijsse_original = r
axs[1].scatter(ec_data['rv_nijsse'], ec_data['ecs'], color = removed_color, marker = 'o', label = 'major eruptions\nremoved')
slope, intercept, r, p, se = linregress(ec_data['rv_nijsse'], ec_data['ecs'])
r_nijsse_rv = r
for i in range(len(ec_data)):
x_i = ec_data['rv_nijsse'][i]
y_i = ec_data['ecs'][i]
dx_i = x_i - ec_data['nijsse'][i]
dy_i = 0
axs[1].arrow(x_i, y_i, -1*dx_i, dy_i, linewidth = 0.05)
axs[1].text(0.15, 4.5, 'r='+str(np.round(r_nijsse_original,2)), color = volcano_color)
axs[1].text(0.3, 2.5, 'r='+str(np.round(r_nijsse_rv,2)), color = removed_color)

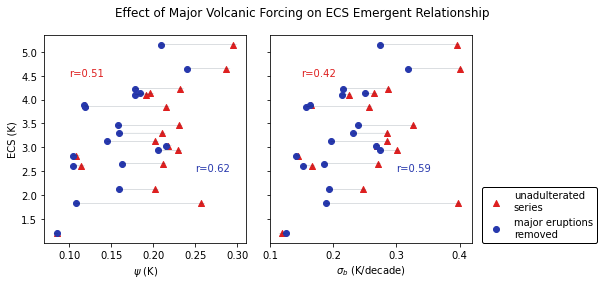

fig.suptitle('Effect of Major Volcanic Forcing on ECS Emergent Relationship')
axs[1].legend(loc = (1.05, 0), edgecolor = 'black', framealpha = 1)
axs[0].set_ylabel('ECS (K)')
axs[0].set_xlabel(r'$\psi$ (K)')
axs[1].set_xlabel(r'$\sigma_{b}$ (K/decade)')
plt.tight_layout()
# plt.savefig('figures/figure_s1.png', dpi=3000)
Supplemental Figure 2 (S2)#
from adjustText import adjust_text
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from scipy import signal
from scipy.stats import linregress
import matplotlib as mpl
from statsmodels.api import tsa
import statsmodels.api as sm
import xarray as xr
mpl.rcParams['figure.facecolor'] = 'white'
mpl.rcParams['figure.dpi']= 150
mpl.rcParams['font.size'] = 12
def get_forcing(saod):
'''
Takes in a timeseries of SAOD (numpy array) and outputs a forcing profile (in W/m^2)
'''
return np.multiply(-20.7, np.subtract(1, np.exp(np.multiply(-1, saod))))
def remove_volcano(timeseries, temp_anomaly):
X = temp_anomaly # independent variable
y = timeseries # dependent variable
# to get intercept -- this is optional
X = sm.add_constant(X)
# fit the regression model
reg = sm.OLS(y, X).fit()
return reg.resid.values
# take a spatial average
def weighted_mean(da):
# make 2d array of weights in case that lat is 1d
if len(da.lat.shape)==2:
weights=np.cos(np.deg2rad(da.lat))
elif len(da.lat.shape)==1:
weights = xr.ones_like(da)* (np.cos(np.deg2rad((da.lat))).values)
# turn weights into nan where da is nan
weights = weights*da/da
if 'lat' in da.dims:
wm = (da*weights).sum(dim=['lat'], skipna=True) / weights.sum(dim=['lat'], skipna=True)
elif 'i' in da.dims:
wm = (da*weights).sum(dim=['i','j'], skipna=True) / weights.sum(dim=['i','j'], skipna=True)
elif 'nlat' in da.dims:
wm = (da*weights).sum(dim=['nlat','nlon'], skipna=True) / weights.sum(dim=['nlat','nlon'], skipna=True)
elif 'x' in da.dims:
wm = (da*weights).sum(dim=['x','y'], skipna=True) / weights.sum(dim=['x','y'], skipna=True)
return wm
def compute_cox(x):
x = x[~np.isnan(x)]
psi_vals=[]
for i in np.arange(0, len(x)-55):
y = signal.detrend(x[i:i+55])
auto_m1 = tsa.acf(y,nlags=1) # autocorrelation function from statsmodels
auto_m1b = auto_m1[1] # select 1 lag autocorrelation value
sigma_m1= np.std(y)
log_m1= np.log(auto_m1b)
log_m1b = np.abs(log_m1) # take absolute value
sqrt_m1 = np.sqrt(log_m1b)
psi = sigma_m1/sqrt_m1
psi_vals.append(psi)
return np.nanmean(psi_vals)
def compute_nijsse(x, length=10):
# remove NaNs from the timeseries
x = np.array(x)
mask = ~np.isnan(x)
x = x[mask]
# fill it with slopes
slopes = []
i = 0
while i < len(x)-length:
slope, intercept, r, p, se = linregress(np.arange(0,length), x[i:i+length])
slopes.append(length*slope)
i+=length
return np.nanstd(slopes)
evolv2k_ts = weighted_mean(xr.open_dataset('data/evolv2k.nc')).sel(time=slice(850,1850))
evolv2k_saod = []
i=850
while i <= 1850:
evolv2k_saod.append(float(evolv2k_ts.sel(time=slice(i, i+1)).mean(dim='time').aod550.values))
i+=1
evolv2k_forcing = get_forcing(evolv2k_saod)
gao_2008_saod = np.divide(pd.read_csv('data/gao_2008.csv')['gm'].values.astype(float), 1.2*10**3)
gao_2008_forcing = get_forcing(gao_2008_saod)
crowley_2000_forcing = pd.read_csv('data/crowley_2000.txt', delimiter = '\t')['Vol.hl.cct'].values
crowley_2008_saod = pd.read_csv('data/crowley_2008.txt', delimiter = '\t')['AOD'].values
crowley_2008_forcing = get_forcing(crowley_2008_saod)
df = pd.read_csv('data/ts.csv')
model_keys = df.keys()[2:]
forcings = ['gao', 'gao', 'crowley_08', 'crowley_00',
'evolv2k', 'crowley_08', 'gao', 'evolv2k',
'crowley_08', 'gao', 'evolv2k', 'gao',
'evolv2k', 'evolv2k', 'evolv2k', 'crowley_08',
'evolv2k', 'evolv2k']
ecs_vals = []
original_cox = []
rv_cox = []
original_nijsse = []
rv_nijsse = []
t = pd.read_csv('data/ecs.csv')
for i in range(len(model_keys)):
ts = df[model_keys[i]].values
ts_past1000 = ts[:1001]
if model_keys[i] == 'HadCM3':
X = crowley_2008_forcing
y = ts_past1000
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ecs_vals.append(t[t['model name']==model_keys[i]]['ecs'].values[0])
original_cox.append(compute_cox(ts_past1000))
rv_cox.append(compute_cox(np.add(reg.resid, reg.params[0])))
original_nijsse.append(compute_nijsse(ts_past1000))
rv_nijsse.append(compute_nijsse(np.add(reg.resid, reg.params[0])))
elif forcings[i] == 'gao':
X = gao_2008_forcing
y = ts_past1000
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ecs_vals.append(t[t['model name']==model_keys[i]]['ecs'].values[0])
original_cox.append(compute_cox(ts_past1000))
rv_cox.append(compute_cox(np.add(reg.resid, reg.params[0])))
original_nijsse.append(compute_nijsse(ts_past1000))
rv_nijsse.append(compute_nijsse(np.add(reg.resid, reg.params[0])))
elif forcings[i] == 'crowley_00':
X = crowley_2000_forcing
y = ts[151:]
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ecs_vals.append(t[t['model name']==model_keys[i]]['ecs'].values[0])
original_cox.append(compute_cox(ts))
rv_cox.append(compute_cox(np.add(reg.resid, reg.params[0])))
original_nijsse.append(compute_nijsse(ts))
rv_nijsse.append(compute_nijsse(np.add(reg.resid, reg.params[0])))
elif forcings[i] == 'crowley_08':
X = crowley_2008_forcing
y = ts_past1000
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ecs_vals.append(t[t['model name']==model_keys[i]]['ecs'].values[0])
original_cox.append(compute_cox(ts_past1000))
rv_cox.append(compute_cox(np.add(reg.resid, reg.params[0])))
original_nijsse.append(compute_nijsse(ts_past1000))
rv_nijsse.append(compute_nijsse(np.add(reg.resid, reg.params[0])))
elif forcings[i] == 'evolv2k':
X = evolv2k_forcing
y = ts_past1000
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ecs_vals.append(t[t['model name']==model_keys[i]]['ecs'].values[0])
original_cox.append(compute_cox(ts_past1000))
rv_cox.append(compute_cox(np.add(reg.resid, reg.params[0])))
original_nijsse.append(compute_nijsse(ts_past1000))
rv_nijsse.append(compute_nijsse(np.add(reg.resid, reg.params[0])))
sigma_1850 = rv_nijsse
sigma_full = ec_data['rv_nijsse']
cox_1850 = rv_cox
cox_full = ec_data['rv_cox']
ecs = ec_data['ecs']
df = pd.read_csv('data/ts.csv')
model_keys = df.keys()[2:]
sigma_historical = []
cox_historical = []
t = pd.read_csv('data/ec_data.csv')
for i in range(len(model_keys)):
ecs_vals.append(t[t['model']==model_keys[i]]['ecs'].values[0])
ts = df[model_keys[i]].values
ts_historical = ts[1000:]
if t[t['model']==model_keys[i]]['generation'].values[0] == 'CMIP5':
cox_historical.append(compute_cox(ts_historical))
sigma_historical.append(compute_nijsse(ts_historical))
if t[t['model']==model_keys[i]]['generation'].values[0] == 'CMIP6':
cox_historical.append(compute_cox(ts_historical))
sigma_historical.append(compute_nijsse(ts_historical))
if t[t['model']==model_keys[i]]['generation'].values[0] == 'na':
cox_historical.append(compute_cox(ts_historical))
sigma_historical.append(compute_nijsse(ts_historical))
color_1850 = 'blue'
color_historical = 'red'
color_full = 'purple'
fig, axs = plt.subplots(1, 2, figsize = (8.5, 4), sharey=True)
axs[0].scatter(cox_1850, ecs, color = color_1850, marker = 'o', label = '850-1850')
slope, intercept, r, p, se = linregress(cox_1850, ecs)
r_1850_psi = r
x=np.linspace(0.05, 0.35, 100)
axs[0].plot(x,slope*x+intercept, color = color_1850)
axs[0].scatter(cox_historical, ecs, color = color_historical, marker = 'o', label = '1850-1999')
slope, intercept, r, p, se = linregress(cox_historical, ecs)
r_historical_psi = r
x=np.linspace(0.05, 0.35, 100)
axs[0].plot(x,slope*x+intercept, color = color_historical)
axs[0].scatter(cox_full, ecs, color = color_full, marker = 'o', label = '850-1999')
slope, intercept, r, p, se = linregress(cox_full, ecs)
r_full_psi = r
x=np.linspace(0.05, 0.35, 100)
axs[0].plot(x,slope*x+intercept, color = color_full)
axs[0].set_xlim(0.06,0.28)
axs[0].set_ylim(1,5.5)
axs[1].scatter(sigma_1850, ecs, color = color_1850, marker = 'o', label = '850-1850')
slope, intercept, r, p, se = linregress(sigma_1850, ecs)
r_1850_sigma = r
x=np.linspace(0.05, 0.35, 100)
axs[1].plot(x,slope*x+intercept, color = color_1850)
axs[1].scatter(sigma_historical, ecs, color = 'red', marker = 'o', label = '1850-1999')
slope, intercept, r, p, se = linregress(sigma_historical, ecs)
r_historical_sigma = r
x=np.linspace(0.05, 0.35, 100)
axs[1].plot(x,slope*x+intercept, color = color_historical)
axs[1].scatter(sigma_full, ecs, color = color_full, marker = 'o', label = '850-1999')
slope, intercept, r, p, se = linregress(sigma_full, ecs)
r_full_sigma = r
x=np.linspace(0.05, 0.35, 100)
axs[1].plot(x,slope*x+intercept, color = color_full)
axs[1].set_xlim(0.05, 0.35)
axs[1].set_ylim(1, 5.5)
axs[1].text(0.26, 1.5, 'r='+str(np.round(r_full_sigma,2)), color = color_full)
axs[1].text(0.26, 2.1, 'r='+str(np.round(r_1850_sigma,2)), color = color_1850)
axs[1].text(0.26, 1.8, 'r='+str(np.round(r_historical_sigma,2)), color = color_historical)
axs[0].text(0.22, 1.5, 'r='+str(np.round(r_full_psi,2)), color = color_full)
axs[0].text(0.22, 2.1, 'r='+str(np.round(r_1850_psi,2)), color = color_1850)
axs[0].text(0.22, 1.8, 'r='+str(np.round(r_historical_psi,2)), color = color_historical)

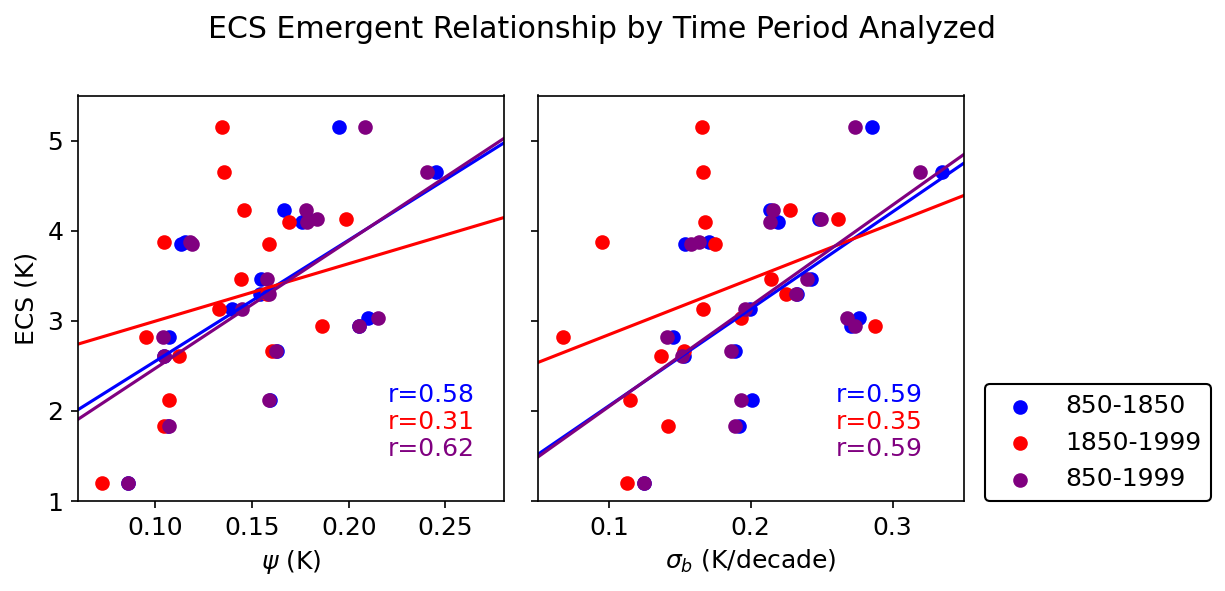

fig.suptitle('ECS Emergent Relationship by Time Period Analyzed')
axs[1].legend(loc = (1.05, 0), edgecolor = 'black', framealpha = 1)
axs[0].set_ylabel('ECS (K)')
axs[0].set_xlabel(r'$\psi$ (K)')
axs[1].set_xlabel(r'$\sigma_{b}$ (K/decade)')
plt.tight_layout()
# plt.savefig('figures/figure_s2.png', dpi=3000)
Supplemental Figure 3 (S3)#
from matplotlib import pyplot as plt
from statsmodels.api import tsa
from scipy import signal
from scipy.stats import linregress
from scipy import stats
import numpy as np
import pandas as pd
import warnings
import xarray as xr
import random
from scipy.stats import chi2
warnings.filterwarnings('ignore')
"""Operations on cartesian geographical grid."""
import numpy as np
EARTH_RADIUS = 6371000.0 # m
def _guess_bounds(points, bound_position=0.5):
"""
Guess bounds of grid cells.
Simplified function from iris.coord.Coord.
Parameters
----------
points: numpy.array
Array of grid points of shape (N,).
bound_position: float, optional
Bounds offset relative to the grid cell centre.
Returns
-------
Array of shape (N, 2).
"""
diffs = np.diff(points)
diffs = np.insert(diffs, 0, diffs[0])
diffs = np.append(diffs, diffs[-1])
min_bounds = points - diffs[:-1] * bound_position
max_bounds = points + diffs[1:] * (1 - bound_position)
return np.array([min_bounds, max_bounds]).transpose()
def _quadrant_area(radian_lat_bounds, radian_lon_bounds, radius_of_earth):
"""
Calculate spherical segment areas.
Taken from SciTools iris library.
Area weights are calculated for each lat/lon cell as:
.. math::
r^2 (lon_1 - lon_0) ( sin(lat_1) - sin(lat_0))
The resulting array will have a shape of
*(radian_lat_bounds.shape[0], radian_lon_bounds.shape[0])*
The calculations are done at 64 bit precision and the returned array
will be of type numpy.float64.
Parameters
----------
radian_lat_bounds: numpy.array
Array of latitude bounds (radians) of shape (M, 2)
radian_lon_bounds: numpy.array
Array of longitude bounds (radians) of shape (N, 2)
radius_of_earth: float
Radius of the Earth (currently assumed spherical)
Returns
-------
Array of grid cell areas of shape (M, N).
"""
# ensure pairs of bounds
if (
radian_lat_bounds.shape[-1] != 2
or radian_lon_bounds.shape[-1] != 2
or radian_lat_bounds.ndim != 2
or radian_lon_bounds.ndim != 2
):
raise ValueError("Bounds must be [n,2] array")
# fill in a new array of areas
radius_sqr = radius_of_earth ** 2
radian_lat_64 = radian_lat_bounds.astype(np.float64)
radian_lon_64 = radian_lon_bounds.astype(np.float64)
ylen = np.sin(radian_lat_64[:, 1]) - np.sin(radian_lat_64[:, 0])
xlen = radian_lon_64[:, 1] - radian_lon_64[:, 0]
areas = radius_sqr * np.outer(ylen, xlen)
# we use abs because backwards bounds (min > max) give negative areas.
return np.abs(areas)
def grid_cell_areas(lon1d, lat1d, radius=EARTH_RADIUS):
"""
Calculate grid cell areas given 1D arrays of longitudes and latitudes
for a planet with the given radius.
Parameters
----------
lon1d: numpy.array
Array of longitude points [degrees] of shape (M,)
lat1d: numpy.array
Array of latitude points [degrees] of shape (M,)
radius: float, optional
Radius of the planet [metres] (currently assumed spherical)
Returns
-------
Array of grid cell areas [metres**2] of shape (M, N).
"""
lon_bounds_radian = np.deg2rad(_guess_bounds(lon1d))
lat_bounds_radian = np.deg2rad(_guess_bounds(lat1d))
area = _quadrant_area(lat_bounds_radian, lon_bounds_radian, radius)
return area
def calc_spatial_mean(
xr_da, lon_name="longitude", lat_name="latitude", radius=EARTH_RADIUS
):
"""
Calculate spatial mean of xarray.DataArray with grid cell weighting.
Parameters
----------
xr_da: xarray.DataArray
Data to average
lon_name: str, optional
Name of x-coordinate
lat_name: str, optional
Name of y-coordinate
radius: float
Radius of the planet [metres], currently assumed spherical (not important anyway)
Returns
-------
Spatially averaged xarray.DataArray.
"""
lon = xr_da[lon_name].values
lat = xr_da[lat_name].values
area_weights = grid_cell_areas(lon, lat, radius=radius)
aw_factor = area_weights / area_weights.max()
return (xr_da * aw_factor).mean(dim=[lon_name, lat_name])
def calc_spatial_integral(
xr_da, lon_name="longitude", lat_name="latitude", radius=EARTH_RADIUS
):
"""
Calculate spatial integral of xarray.DataArray with grid cell weighting.
Parameters
----------
xr_da: xarray.DataArray
Data to average
lon_name: str, optional
Name of x-coordinate
lat_name: str, optional
Name of y-coordinate
radius: float
Radius of the planet [metres], currently assumed spherical (not important anyway)
Returns
-------
Spatially averaged xarray.DataArray.
"""
lon = xr_da[lon_name].values
lat = xr_da[lat_name].values
area_weights = grid_cell_areas(lon, lat, radius=radius)
return (xr_da * area_weights).sum(dim=[lon_name, lat_name])
# computes the Cox metric for a given window
def cox_metric(x):
auto_m1 = tsa.acf(x,nlags=1) # autocorrelation function from statsmodels
auto_m1b = auto_m1[1] # select 1 lag autocorrelation value
sigma_m1= np.std(x, ddof=1) # take the sample standard deviation (fixed from previous code)
log_m1= np.log(auto_m1b) # compute the base-e logarithm
log_m1b = np.abs(log_m1) # take absolute value
sqrt_m1 = np.sqrt(log_m1b) # take square root
theta = sigma_m1/sqrt_m1 # compute theta
return theta # return theta
# computes the average Cox metric across all windows, given a whole time series
def calc_cox(x):
# x=x[1000:] # takes the most recent 1000 years
cox_vals=np.zeros(len(x)-55) # builds array to store the cox estimates
i=0 # window counter
j=0 # storage counter
while i<len(x)-55: # while loop cycles through timeseries to build windows/cox estimates
cox_vals[j]=(cox_metric(signal.detrend(x[i:i+55]))) # detrend, compute and store the Cox estimate
i+=1 # increment window counter
j+=1 # increment storage counter
# return np.mean(cox_vals) # return the mean Cox estimate across the timeseries
return cox_vals
def calc_nijsse(x, length=10):
x = np.array(x)
mask = ~np.isnan(x)
x = x[mask]
slopes = []
i = 0
while i < len(x) - length:
slope, intercept, r, p, se = linregress(np.arange(0, length), x[i:i+length])
slopes.append(length*slope)
i+=length
return slopes
cox_new_1850_2000 = []
nijsse_new_1850_2000 = []

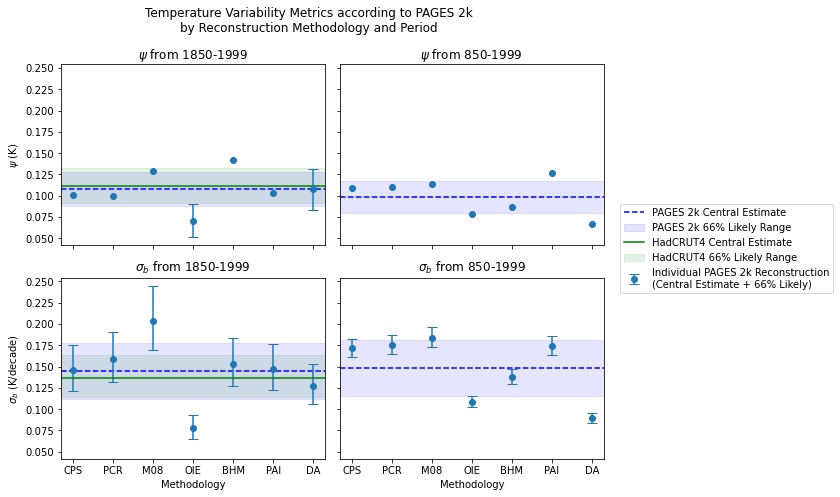

PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(ds_cps[key]))
nijsse_vals_cps.append(calc_nijsse(ds_cps[key]))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(ds_pcr[key]))
nijsse_vals_pcr.append(calc_nijsse(ds_pcr[key]))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(ds_m08[key]))
nijsse_vals_m08.append(calc_nijsse(ds_m08[key]))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(ds_oie[key]))
nijsse_vals_oie.append(calc_nijsse(ds_oie[key]))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(ds_bhm[key]))
nijsse_vals_bhm.append(calc_nijsse(ds_bhm[key]))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(ds_pai[key]))
nijsse_vals_pai.append(calc_nijsse(ds_pai[key]))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(ds_da[key]))
nijsse_vals_da.append(calc_nijsse(ds_da[key]))
print('da')
cox_vals_new_1850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_1850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k = np.zeros((7, 3))
for i in range(len(cox_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_1850_2000[0])):
u=np.nanmean(cox_vals_new_1850_2000[i][j])
s=np.std(cox_vals_new_1850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k[i][1] = np.mean(central_estimates)
cox_estimates_pages2k[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_1850_2000[0])):
s = np.std(nijsse_vals_new_1850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_1850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k[i][2] = np.mean(upper_bounds)
cox_new_850_2000 = []
nijsse_new_850_2000 = []
PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(ds_cps[key]))
nijsse_vals_cps.append(calc_nijsse(ds_cps[key]))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(ds_pcr[key]))
nijsse_vals_pcr.append(calc_nijsse(ds_pcr[key]))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(ds_m08[key]))
nijsse_vals_m08.append(calc_nijsse(ds_m08[key]))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(ds_oie[key]))
nijsse_vals_oie.append(calc_nijsse(ds_oie[key]))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(ds_bhm[key]))
nijsse_vals_bhm.append(calc_nijsse(ds_bhm[key]))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(ds_pai[key]))
nijsse_vals_pai.append(calc_nijsse(ds_pai[key]))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(ds_da[key]))
nijsse_vals_da.append(calc_nijsse(ds_da[key]))
print('da')
cox_vals_new_850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(cox_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_850_2000[0])):
u=np.nanmean(cox_vals_new_850_2000[i][j])
s=np.std(cox_vals_new_850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
cox_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_850_2000[0])):
s = np.std(nijsse_vals_new_850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
cps
pcr
m08
oie
bhm
pai
da
cps
pcr
m08
oie
bhm
pai
da
print('Cox, Original, 850-1850',np.mean(cox_estimates_pages2k.T[1]))
print('Cox, Original, 850-2000',np.mean(cox_estimates_pages2k_850_2000.T[1]))
print('Nijsse, Original, 850-1850',np.mean(nijsse_estimates_pages2k.T[1]))
print('Nijsse, Original, 850-2000',np.mean(nijsse_estimates_pages2k_850_2000.T[1]))
print('Cox, Original, 850-1850 (Spread)',np.std(cox_estimates_pages2k.T[1]))
print('Cox, Original, 850-2000 (Spread)',np.std(cox_estimates_pages2k_850_2000.T[1]))
print('Nijsse, Original, 850-1850 (Spread)',np.std(nijsse_estimates_pages2k.T[1]))
print('Nijsse, Original, 850-2000 (Spread)',np.std(nijsse_estimates_pages2k_850_2000.T[1]))
Cox, Original, 850-1850 0.09695419307044373
Cox, Original, 850-2000 0.09853884476474513
Nijsse, Original, 850-1850 0.14857331295794465
Nijsse, Original, 850-2000 0.14873197126887322
Cox, Original, 850-1850 (Spread) 0.022394243251457023
Cox, Original, 850-2000 (Spread) 0.020106711340539315
Nijsse, Original, 850-1850 (Spread) 0.036307284813961054
Nijsse, Original, 850-2000 (Spread) 0.034638026746437865
evolv2k_ts = weighted_mean(xr.open_dataset('data/evolv2k.nc')).sel(time=slice(850,1850))
evolv2k_saod = []
i=850
while i <= 1850:
evolv2k_saod.append(float(evolv2k_ts.sel(time=slice(i, i+1)).mean(dim='time').aod550.values))
i+=1
evolv2k_forcing = get_forcing(evolv2k_saod)
def remove_forcing(ts):
X = evolv2k_forcing
y = ts[:1001]
X = sm.add_constant(X)
reg = sm.OLS(y, X).fit()
ts_past1000 = reg.resid
ts_hist = np.subtract(np.array(ts[1001:]),ts[1001])
return np.append(ts_past1000,ts_hist)
# computes the Cox metric for a given window
def cox_metric(x):
auto_m1 = tsa.acf(x,nlags=1) # autocorrelation function from statsmodels
auto_m1b = auto_m1[1] # select 1 lag autocorrelation value
sigma_m1= np.std(x, ddof=1) # take the sample standard deviation (fixed from previous code)
log_m1= np.log(auto_m1b) # compute the base-e logarithm
log_m1b = np.abs(log_m1) # take absolute value
sqrt_m1 = np.sqrt(log_m1b) # take square root
theta = sigma_m1/sqrt_m1 # compute theta
return theta # return theta
# computes the average Cox metric across all windows, given a whole time series
def calc_cox(x):
# x=x[1000:] # takes the most recent 1000 years
cox_vals=np.zeros(len(x)-55) # builds array to store the cox estimates
i=0 # window counter
j=0 # storage counter
while i<len(x)-55: # while loop cycles through timeseries to build windows/cox estimates
cox_vals[j]=(cox_metric(signal.detrend(x[i:i+55]))) # detrend, compute and store the Cox estimate
i+=1 # increment window counter
j+=1 # increment storage counter
# return np.mean(cox_vals) # return the mean Cox estimate across the timeseries
return cox_vals
def calc_nijsse(x, length=10):
x = np.array(x)
mask = ~np.isnan(x)
x = x[mask]
slopes = []
i = 0
while i < len(x) - length:
slope, intercept, r, p, se = linregress(np.arange(0, length), x[i:i+length])
slopes.append(length*slope)
i+=length
return slopes
cox_new_1850_2000 = []
nijsse_new_1850_2000 = []
PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(remove_forcing(ds_cps[key])))
nijsse_vals_cps.append(calc_nijsse(remove_forcing(ds_cps[key])))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(remove_forcing(ds_pcr[key])))
nijsse_vals_pcr.append(calc_nijsse(remove_forcing(ds_pcr[key])))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(remove_forcing(ds_m08[key])))
nijsse_vals_m08.append(calc_nijsse(remove_forcing(ds_m08[key])))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(remove_forcing(ds_oie[key])))
nijsse_vals_oie.append(calc_nijsse(remove_forcing(ds_oie[key])))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(remove_forcing(ds_bhm[key])))
nijsse_vals_bhm.append(calc_nijsse(remove_forcing(ds_bhm[key])))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(remove_forcing(ds_pai[key])))
nijsse_vals_pai.append(calc_nijsse(remove_forcing(ds_pai[key])))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<=1850)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(remove_forcing(ds_da[key])))
nijsse_vals_da.append(calc_nijsse(remove_forcing(ds_da[key])))
print('da')
cox_vals_new_1850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_1850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k = np.zeros((7, 3))
for i in range(len(cox_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_1850_2000[0])):
u=np.nanmean(cox_vals_new_1850_2000[i][j])
s=np.std(cox_vals_new_1850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k[i][1] = np.mean(central_estimates)
cox_estimates_pages2k[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_1850_2000[0])):
s = np.std(nijsse_vals_new_1850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_1850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k[i][2] = np.mean(upper_bounds)
cox_new_850_2000 = []
nijsse_new_850_2000 = []
PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(remove_forcing(ds_cps[key])))
nijsse_vals_cps.append(calc_nijsse(remove_forcing(ds_cps[key])))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(remove_forcing(ds_pcr[key])))
nijsse_vals_pcr.append(calc_nijsse(remove_forcing(ds_pcr[key])))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(remove_forcing(ds_m08[key])))
nijsse_vals_m08.append(calc_nijsse(remove_forcing(ds_m08[key])))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(remove_forcing(ds_oie[key])))
nijsse_vals_oie.append(calc_nijsse(remove_forcing(ds_oie[key])))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(remove_forcing(ds_bhm[key])))
nijsse_vals_bhm.append(calc_nijsse(remove_forcing(ds_bhm[key])))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(remove_forcing(ds_pai[key])))
nijsse_vals_pai.append(calc_nijsse(remove_forcing(ds_pai[key])))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(remove_forcing(ds_da[key])))
nijsse_vals_da.append(calc_nijsse(remove_forcing(ds_da[key])))
print('da')
cox_vals_new_850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(cox_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_850_2000[0])):
u=np.nanmean(cox_vals_new_850_2000[i][j])
s=np.std(cox_vals_new_850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
cox_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_850_2000[0])):
s = np.std(nijsse_vals_new_850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
cps
pcr
m08
oie
bhm
pai
da
cps
pcr
m08
oie
bhm
pai
da
print(np.mean(cox_estimates_pages2k.T[1]),
np.mean(cox_estimates_pages2k_850_2000.T[1]),
np.mean(nijsse_estimates_pages2k.T[1]),
np.mean(nijsse_estimates_pages2k_850_2000.T[1]))
print(np.std(cox_estimates_pages2k.T[1]),
np.std(cox_estimates_pages2k_850_2000.T[1]),
np.std(nijsse_estimates_pages2k.T[1]),
np.std(nijsse_estimates_pages2k_850_2000.T[1]))
0.09485802708326348 0.09702184436805132 0.14567803698816997 0.14686811787714496
0.022357431751678373 0.020184056441559982 0.03584102093823073 0.03430060336507687
from matplotlib import pyplot as plt
from statsmodels.api import tsa
from scipy import signal
from scipy.stats import linregress
from scipy import stats
import numpy as np
import pandas as pd
import warnings
import xarray as xr
import random
from scipy.stats import chi2
warnings.filterwarnings('ignore')
"""Operations on cartesian geographical grid."""
import numpy as np
EARTH_RADIUS = 6371000.0 # m
def _guess_bounds(points, bound_position=0.5):
"""
Guess bounds of grid cells.
Simplified function from iris.coord.Coord.
Parameters
----------
points: numpy.array
Array of grid points of shape (N,).
bound_position: float, optional
Bounds offset relative to the grid cell centre.
Returns
-------
Array of shape (N, 2).
"""
diffs = np.diff(points)
diffs = np.insert(diffs, 0, diffs[0])
diffs = np.append(diffs, diffs[-1])
min_bounds = points - diffs[:-1] * bound_position
max_bounds = points + diffs[1:] * (1 - bound_position)
return np.array([min_bounds, max_bounds]).transpose()
def _quadrant_area(radian_lat_bounds, radian_lon_bounds, radius_of_earth):
"""
Calculate spherical segment areas.
Taken from SciTools iris library.
Area weights are calculated for each lat/lon cell as:
.. math::
r^2 (lon_1 - lon_0) ( sin(lat_1) - sin(lat_0))
The resulting array will have a shape of
*(radian_lat_bounds.shape[0], radian_lon_bounds.shape[0])*
The calculations are done at 64 bit precision and the returned array
will be of type numpy.float64.
Parameters
----------
radian_lat_bounds: numpy.array
Array of latitude bounds (radians) of shape (M, 2)
radian_lon_bounds: numpy.array
Array of longitude bounds (radians) of shape (N, 2)
radius_of_earth: float
Radius of the Earth (currently assumed spherical)
Returns
-------
Array of grid cell areas of shape (M, N).
"""
# ensure pairs of bounds
if (
radian_lat_bounds.shape[-1] != 2
or radian_lon_bounds.shape[-1] != 2
or radian_lat_bounds.ndim != 2
or radian_lon_bounds.ndim != 2
):
raise ValueError("Bounds must be [n,2] array")
# fill in a new array of areas
radius_sqr = radius_of_earth ** 2
radian_lat_64 = radian_lat_bounds.astype(np.float64)
radian_lon_64 = radian_lon_bounds.astype(np.float64)
ylen = np.sin(radian_lat_64[:, 1]) - np.sin(radian_lat_64[:, 0])
xlen = radian_lon_64[:, 1] - radian_lon_64[:, 0]
areas = radius_sqr * np.outer(ylen, xlen)
# we use abs because backwards bounds (min > max) give negative areas.
return np.abs(areas)
def grid_cell_areas(lon1d, lat1d, radius=EARTH_RADIUS):
"""
Calculate grid cell areas given 1D arrays of longitudes and latitudes
for a planet with the given radius.
Parameters
----------
lon1d: numpy.array
Array of longitude points [degrees] of shape (M,)
lat1d: numpy.array
Array of latitude points [degrees] of shape (M,)
radius: float, optional
Radius of the planet [metres] (currently assumed spherical)
Returns
-------
Array of grid cell areas [metres**2] of shape (M, N).
"""
lon_bounds_radian = np.deg2rad(_guess_bounds(lon1d))
lat_bounds_radian = np.deg2rad(_guess_bounds(lat1d))
area = _quadrant_area(lat_bounds_radian, lon_bounds_radian, radius)
return area
def calc_spatial_mean(
xr_da, lon_name="longitude", lat_name="latitude", radius=EARTH_RADIUS
):
"""
Calculate spatial mean of xarray.DataArray with grid cell weighting.
Parameters
----------
xr_da: xarray.DataArray
Data to average
lon_name: str, optional
Name of x-coordinate
lat_name: str, optional
Name of y-coordinate
radius: float
Radius of the planet [metres], currently assumed spherical (not important anyway)
Returns
-------
Spatially averaged xarray.DataArray.
"""
lon = xr_da[lon_name].values
lat = xr_da[lat_name].values
area_weights = grid_cell_areas(lon, lat, radius=radius)
aw_factor = area_weights / area_weights.max()
return (xr_da * aw_factor).mean(dim=[lon_name, lat_name])
def calc_spatial_integral(
xr_da, lon_name="longitude", lat_name="latitude", radius=EARTH_RADIUS
):
"""
Calculate spatial integral of xarray.DataArray with grid cell weighting.
Parameters
----------
xr_da: xarray.DataArray
Data to average
lon_name: str, optional
Name of x-coordinate
lat_name: str, optional
Name of y-coordinate
radius: float
Radius of the planet [metres], currently assumed spherical (not important anyway)
Returns
-------
Spatially averaged xarray.DataArray.
"""
lon = xr_da[lon_name].values
lat = xr_da[lat_name].values
area_weights = grid_cell_areas(lon, lat, radius=radius)
return (xr_da * area_weights).sum(dim=[lon_name, lat_name])
# computes the Cox metric for a given window
def cox_metric(x):
auto_m1 = tsa.acf(x,nlags=1) # autocorrelation function from statsmodels
auto_m1b = auto_m1[1] # select 1 lag autocorrelation value
sigma_m1= np.std(x, ddof=1) # take the sample standard deviation (fixed from previous code)
log_m1= np.log(auto_m1b) # compute the base-e logarithm
log_m1b = np.abs(log_m1) # take absolute value
sqrt_m1 = np.sqrt(log_m1b) # take square root
theta = sigma_m1/sqrt_m1 # compute theta
return theta # return theta
# computes the average Cox metric across all windows, given a whole time series
def calc_cox(x):
# x=x[1000:] # takes the most recent 1000 years
cox_vals=np.zeros(len(x)-55) # builds array to store the cox estimates
i=0 # window counter
j=0 # storage counter
while i<len(x)-55: # while loop cycles through timeseries to build windows/cox estimates
cox_vals[j]=(cox_metric(signal.detrend(x[i:i+55]))) # detrend, compute and store the Cox estimate
i+=1 # increment window counter
j+=1 # increment storage counter
# return np.mean(cox_vals) # return the mean Cox estimate across the timeseries
return cox_vals
def calc_nijsse(x, length=10):
x = np.array(x)
mask = ~np.isnan(x)
x = x[mask]
slopes = []
i = 0
while i < len(x) - length:
slope, intercept, r, p, se = linregress(np.arange(0, length), x[i:i+length])
slopes.append(length*slope)
i+=length
return slopes
cox_new_1850_2000 = []
nijsse_new_1850_2000 = []
PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(ds_cps[key]))
nijsse_vals_cps.append(calc_nijsse(ds_cps[key]))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(ds_pcr[key]))
nijsse_vals_pcr.append(calc_nijsse(ds_pcr[key]))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(ds_m08[key]))
nijsse_vals_m08.append(calc_nijsse(ds_m08[key]))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(ds_oie[key]))
nijsse_vals_oie.append(calc_nijsse(ds_oie[key]))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(ds_bhm[key]))
nijsse_vals_bhm.append(calc_nijsse(ds_bhm[key]))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(ds_pai[key]))
nijsse_vals_pai.append(calc_nijsse(ds_pai[key]))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=1850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(ds_da[key]))
nijsse_vals_da.append(calc_nijsse(ds_da[key]))
print('da')
cox_vals_new_1850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_1850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k = np.zeros((7, 3))
for i in range(len(cox_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_1850_2000[0])):
u=np.nanmean(cox_vals_new_1850_2000[i][j])
s=np.std(cox_vals_new_1850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k[i][1] = np.mean(central_estimates)
cox_estimates_pages2k[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_1850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_1850_2000[0])):
s = np.std(nijsse_vals_new_1850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_1850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k[i][2] = np.mean(upper_bounds)
cox_estimate_hadcrut4 = np.zeros(3)
for i in range(1,101):
ts = calc_cox(calc_spatial_mean(xr.open_dataset('data/HadCRUT4/HadCRUT.4.6.0.0.anomalies.'+str(i)+'.nc').groupby('time.year').mean('time').sel(year=slice(1850,2000)).temperature_anomaly))
u = np.mean(ts)
s = np.std(ts, ddof=1)
cox_estimate_hadcrut4[0] = u-0.95*s
cox_estimate_hadcrut4[1] = u
cox_estimate_hadcrut4[2] = u+0.95*s
nijsse_estimate_hadcrut4 = np.zeros(3)
for i in range(1,101):
ts = calc_nijsse(calc_spatial_mean(xr.open_dataset('data/HadCRUT4/HadCRUT.4.6.0.0.anomalies.'+str(i)+'.nc').groupby('time.year').mean('time').sel(year=slice(1850,2000)).temperature_anomaly))
s = np.std(ts, ddof=1)
n = len(ts)
nijsse_estimate_hadcrut4[0] = np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n))
nijsse_estimate_hadcrut4[1] = s
nijsse_estimate_hadcrut4[2] = np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n))
cox_new_850_2000 = []
nijsse_new_850_2000 = []
PAGES=pd.read_csv('data/pages_2k/CPS.txt',sep='\t',header=(0))
ds_cps=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_cps = []
nijsse_vals_cps = []
for key in ds_cps.keys():
cox_vals_cps.append(calc_cox(ds_cps[key]))
nijsse_vals_cps.append(calc_nijsse(ds_cps[key]))
print('cps')
PAGES=pd.read_csv('data/pages_2k/PCR.txt',sep='\t',header=(0))
ds_pcr=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pcr = []
nijsse_vals_pcr = []
for key in ds_pcr.keys():
cox_vals_pcr.append(calc_cox(ds_pcr[key]))
nijsse_vals_pcr.append(calc_nijsse(ds_pcr[key]))
print('pcr')
PAGES=pd.read_csv('data/pages_2k/M08.txt',sep='\t',header=(0))
ds_m08=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_m08 = []
nijsse_vals_m08 = []
for key in ds_m08.keys():
cox_vals_m08.append(calc_cox(ds_m08[key]))
nijsse_vals_m08.append(calc_nijsse(ds_m08[key]))
print('m08')
PAGES=pd.read_csv('data/pages_2k/OIE.txt',sep='\t',header=(0))
ds_oie=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_oie = []
nijsse_vals_oie = []
for key in ds_oie.keys():
cox_vals_oie.append(calc_cox(ds_oie[key]))
nijsse_vals_oie.append(calc_nijsse(ds_oie[key]))
print('oie')
PAGES=pd.read_csv('data/pages_2k/BHM.txt',sep='\t',header=(0))
ds_bhm=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_bhm = []
nijsse_vals_bhm = []
for key in ds_bhm.keys():
cox_vals_bhm.append(calc_cox(ds_bhm[key]))
nijsse_vals_bhm.append(calc_nijsse(ds_bhm[key]))
print('bhm')
PAGES=pd.read_csv('data/pages_2k/PAI.txt',sep='\t',header=(0))
ds_pai=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_pai = []
nijsse_vals_pai = []
for key in ds_pai.keys():
cox_vals_pai.append(calc_cox(ds_pai[key]))
nijsse_vals_pai.append(calc_nijsse(ds_pai[key]))
print('pai')
PAGES=pd.read_csv('data/pages_2k/DA.txt',sep='\t',header=(0))
ds_da=PAGES[(PAGES['Year_CE']>=850) & (PAGES['Year_CE']<2000)].drop('Year_CE', axis=1)
cox_vals_da = []
nijsse_vals_da = []
for key in ds_da.keys():
cox_vals_da.append(calc_cox(ds_da[key]))
nijsse_vals_da.append(calc_nijsse(ds_da[key]))
print('da')
cox_vals_new_850_2000 = [
cox_vals_cps,
cox_vals_pcr,
cox_vals_m08,
cox_vals_oie,
cox_vals_bhm,
cox_vals_pai,
cox_vals_da,
]
nijsse_vals_new_850_2000 = [
nijsse_vals_cps,
nijsse_vals_pcr,
nijsse_vals_m08,
nijsse_vals_oie,
nijsse_vals_bhm,
nijsse_vals_pai,
nijsse_vals_da,
]
cox_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(cox_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(cox_vals_new_850_2000[0])):
u=np.nanmean(cox_vals_new_850_2000[i][j])
s=np.std(cox_vals_new_850_2000[i][j], ddof=1)
central_estimates.append(u)
lower_bounds.append(u-0.95*s)
upper_bounds.append(u+0.95*s)
cox_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
cox_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
cox_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
nijsse_estimates_pages2k_850_2000 = np.zeros((7, 3))
for i in range(len(nijsse_vals_new_850_2000)):
lower_bounds = []
central_estimates = []
upper_bounds = []
for j in range(len(nijsse_vals_new_850_2000[0])):
s = np.std(nijsse_vals_new_850_2000[i][j], ddof=1)
n = len(nijsse_vals_new_850_2000[i][j])
central_estimates.append(s)
lower_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(1-(0.34/2), n)))
upper_bounds.append(np.sqrt((n-1)*s**2/chi2.ppf(0.34/2, n)))
nijsse_estimates_pages2k_850_2000[i][0] = np.mean(lower_bounds)
nijsse_estimates_pages2k_850_2000[i][1] = np.mean(central_estimates)
nijsse_estimates_pages2k_850_2000[i][2] = np.mean(upper_bounds)
cps
pcr
m08
oie
bhm
pai
da
cps
pcr
m08
oie
bhm
pai
da
fig, axs = plt.subplots(2, 2, figsize = (8.5, 7), sharey=True, sharex=True)
methods = ['CPS', 'PCR', 'M08', 'OIE', 'BHM', 'PAI', 'DA']
x = methods
axs[0][0].set_title(r'$\psi$'+' from 1850-1999')
axs[0][0].axhline(y=np.mean(cox_estimates_pages2k.T[1]), color='blue', linestyle = '--')
axs[0][0].axhspan(np.mean(cox_estimates_pages2k.T[1])-0.95*np.std(cox_estimates_pages2k.T[1]),
np.mean(cox_estimates_pages2k.T[1])+0.95*np.std(cox_estimates_pages2k.T[1]),
color = 'blue', alpha = 0.1)
axs[0][0].errorbar(x, cox_estimates_pages2k.T[1],
yerr=[np.abs(np.subtract(cox_estimates_pages2k.T[1],cox_estimates_pages2k.T[0])), np.abs(np.subtract(cox_estimates_pages2k.T[2],cox_estimates_pages2k.T[1]))],
fmt='o', capsize=5)
axs[0][0].axhline(y=cox_estimate_hadcrut4[1], color='green')
axs[0][0].axhspan(cox_estimate_hadcrut4[0], cox_estimate_hadcrut4[2], color = 'green', alpha = 0.1)
axs[0][1].set_title(r'$\psi$'+' from 850-1999')
axs[0][1].axhline(y=np.mean(cox_estimates_pages2k_850_2000.T[1]), color='blue', linestyle = '--')
axs[0][1].axhspan(np.mean(cox_estimates_pages2k_850_2000.T[1])-0.95*np.std(cox_estimates_pages2k_850_2000.T[1]),
np.mean(cox_estimates_pages2k_850_2000.T[1])+0.95*np.std(cox_estimates_pages2k_850_2000.T[1]),
color = 'blue', alpha = 0.1)
axs[0][1].errorbar(x, cox_estimates_pages2k_850_2000.T[1],
yerr=[np.abs(np.subtract(cox_estimates_pages2k_850_2000.T[1],cox_estimates_pages2k_850_2000.T[0])), np.abs(np.subtract(cox_estimates_pages2k_850_2000.T[2],cox_estimates_pages2k_850_2000.T[1]))],
fmt='o', capsize=5)
axs[1][0].set_title(r'$\sigma_{b}$'+' from 1850-1999')
axs[1][0].axhline(y=np.mean(nijsse_estimates_pages2k.T[1]), color='blue', linestyle = '--', label = 'PAGES 2k Central Estimate')
axs[1][0].axhspan(np.mean(nijsse_estimates_pages2k.T[1])-0.95*np.std(nijsse_estimates_pages2k.T[1]),
np.mean(nijsse_estimates_pages2k.T[1])+0.95*np.std(nijsse_estimates_pages2k.T[1]),
color = 'blue', alpha = 0.1, label = 'PAGES 2k 66% Likely Range')
axs[1][0].errorbar(x, nijsse_estimates_pages2k.T[1],
yerr=[np.abs(np.subtract(nijsse_estimates_pages2k.T[1],nijsse_estimates_pages2k.T[0])), np.abs(np.subtract(nijsse_estimates_pages2k.T[2],nijsse_estimates_pages2k.T[1]))],
fmt='o', capsize=5)
axs[1][0].axhline(y=nijsse_estimate_hadcrut4[1], color='green', label = 'HadCRUT4 Central Estimate')
axs[1][0].axhspan(nijsse_estimate_hadcrut4[0], nijsse_estimate_hadcrut4[2], color = 'green', alpha = 0.1, label = 'HadCRUT4 66% Likely Range')
axs[1][1].set_title(r'$\sigma_{b}$'+' from 850-1999')
axs[1][1].axhline(y=np.mean(nijsse_estimates_pages2k_850_2000.T[1]), color='blue', linestyle = '--')
axs[1][1].axhspan(np.mean(nijsse_estimates_pages2k_850_2000.T[1])-0.95*np.std(nijsse_estimates_pages2k_850_2000.T[1]),
np.mean(nijsse_estimates_pages2k_850_2000.T[1])+0.95*np.std(nijsse_estimates_pages2k_850_2000.T[1]),
color = 'blue', alpha = 0.1)
axs[1][1].errorbar(x, nijsse_estimates_pages2k_850_2000.T[1],
yerr=[np.abs(np.subtract(nijsse_estimates_pages2k_850_2000.T[1],nijsse_estimates_pages2k_850_2000.T[0])), np.abs(np.subtract(nijsse_estimates_pages2k_850_2000.T[2],nijsse_estimates_pages2k_850_2000.T[1]))],
fmt='o', capsize=5, label='Individual PAGES 2k Reconstruction\n(Central Estimate + 66% Likely)')
axs[0][0].set_ylabel(r'$\psi$ (K)')
axs[1][0].set_ylabel(r'$\sigma_{b}$ (K/decade)')
axs[1][0].set_xlabel('Methodology')
axs[1][1].set_xlabel('Methodology')
fig.legend(loc='center left', bbox_to_anchor=(1, 0.5))
fig.suptitle('Temperature Variability Metrics according to PAGES 2k\nby Reconstruction Methodology and Period')
plt.tight_layout()
plt.savefig('figures/figure_s3.png', dpi=1000, bbox_inches='tight')

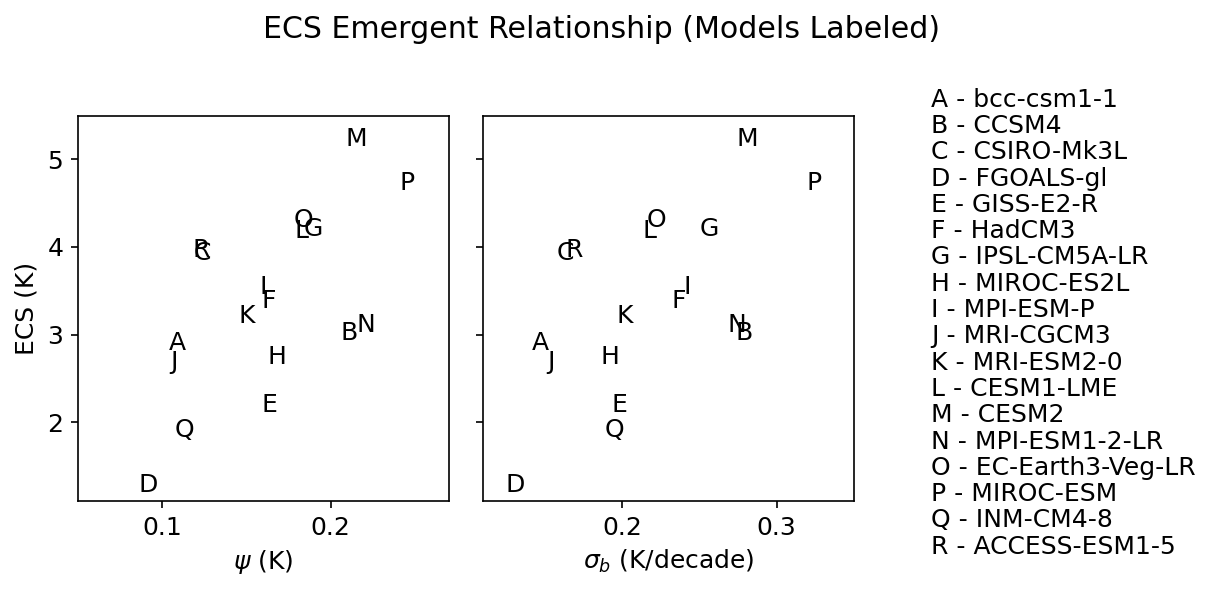

Supplemental Figure 4 (S4)#
ec_data = pd.read_csv('data/ec_data.csv').drop('Unnamed: 0', axis=1)
# read in the timeseries dataframe
timeseries_df = pd.read_csv('data/ts.csv').drop('Unnamed: 0', axis=1)
# the columns of the dataframe are the model names
model_names = timeseries_df.columns[1:]
fig, axs = plt.subplots(1, 2, sharey=True, figsize=(8.5, 4))
fig.suptitle('ECS Emergent Relationship (Models Labeled)')
axs[0].set_ylabel('ECS (K)')
axs[0].set_xlabel(r'$\psi$ (K)')
axs[1].set_xlabel(r'$\sigma_{b}$ (K/decade)')
axs[0].set_xlim((0.05,0.27))
axs[0].set_ylim((1.1,5.5))
axs[1].set_ylim((1.1,5.5))
axs[1].set_xlim((0.11,0.35))
alphabet = ['A', 'B', 'C', 'D',
'E', 'F', 'G', 'H',
'I', 'J', 'K', 'L',
'M', 'N', 'O', 'P',
'Q', 'R']
j = 5.6
for i in range(len(ec_data)):
axs[0].text(ec_data['rv_cox'][i],
ec_data['ecs'][i],
alphabet[i])
axs[1].text(ec_data['rv_nijsse'][i],
ec_data['ecs'][i],
alphabet[i])
axs[1].text(0.4, j, alphabet[i] + ' - '+model_names[i])
j -= 0.3
plt.tight_layout()
plt.savefig('figures/figure_s4.png', dpi=3000)
Supplemental Figure 5 (S5)#
available in the notebook, ‘pp2k-ppe-pda.ipynb’

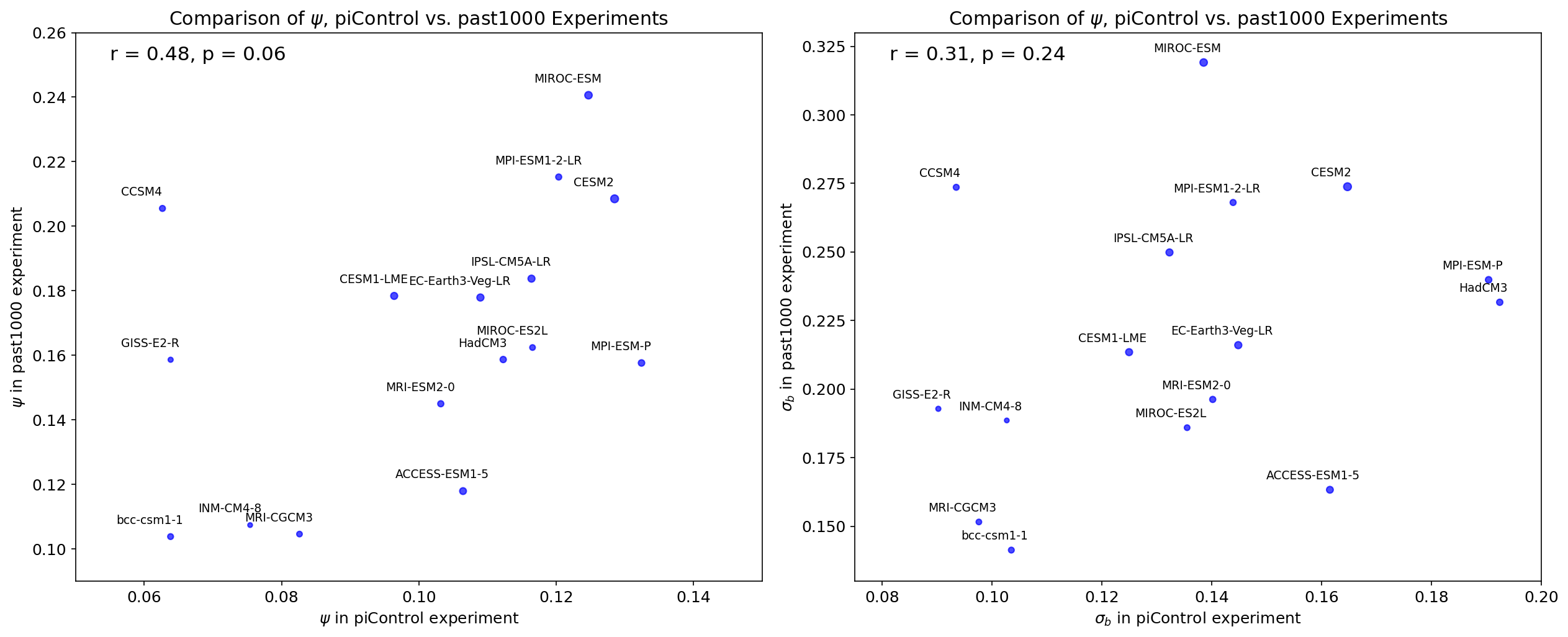

Supplemental Figure 6 (S6)#
def get_lat_name(ds):
"""Figure out what is the latitude coordinate for each dataset."""
for lat_name in ['lat', 'latitude']:
if lat_name in ds.coords:
return lat_name
raise RuntimeError("Couldn't find a latitude coordinate")
def fix_up_dat(dat):
try:
dat=dat.rename({"longitude":"lon", "latitude":"lat"}) #problematic coord names
except: pass
dat = xr.decode_cf(dat, use_cftime = True)
return dat
def weighted_mean(da):
# make 2d array of weights in case that lat is 1d
if len(da.lat.shape)==2:
weights=np.cos(np.deg2rad(da.lat))
elif len(da.lat.shape)==1:
weights = xr.ones_like(da)* (np.cos(np.deg2rad((da.lat))).values)[:,np.newaxis]
# turn weights into nan where da is nan
weights = weights*da/da
if 'lat' in da.dims:
wm = (da*weights).sum(dim=['lat','lon']) / weights.sum(dim=['lat','lon'])
elif 'i' in da.dims:
wm = (da*weights).sum(dim=['i','j']) / weights.sum(dim=['i','j'])
elif 'nlat' in da.dims:
wm = (da*weights).sum(dim=['nlat','nlon']) / weights.sum(dim=['nlat','nlon'])
elif 'x' in da.dims:
wm = (da*weights).sum(dim=['x','y']) / weights.sum(dim=['x','y'])
return wm
def compute_cox(x):
x = x[~np.isnan(x)]
psi_vals=[]
for i in np.arange(0, len(x)-55):
y = signal.detrend(x[i:i+55])
auto_m1 = tsa.acf(y,nlags=1) # autocorrelation function from statsmodels
auto_m1b = auto_m1[1] # select 1 lag autocorrelation value
sigma_m1= np.std(y)
log_m1= np.log(auto_m1b)
log_m1b = np.abs(log_m1) # take absolute value
sqrt_m1 = np.sqrt(log_m1b)
psi = sigma_m1/sqrt_m1
psi_vals.append(psi)
return np.nanmean(psi_vals)
def compute_nijsse(x, length=10):
# remove NaNs from the timeseries
x = np.array(x)
mask = ~np.isnan(x)
x = x[mask]
# fill it with slopes
slopes = []
i = 0
while i < len(x)-length:
slope, intercept, r, p, se = linregress(np.arange(0,length), x[i:i+length])
slopes.append(length*slope)
i+=length
return np.nanstd(slopes)
def get_ecs(model_name):
ecs_df = pd.read_csv('ecs.txt', header=7, delim_whitespace=True)
return ecs_df[ecs_df['MODEL'] == model_name]['ECS'].values[0]
def construct_model_ts(zstore):
dat = fix_up_dat(xr.open_zarr(gcs.get_mapper(zstore), consolidated=True))
return weighted_mean(dat.tas.resample(time='1Y').mean('time')).values
cmip5 = {}
for pair in cmip5_schlund:
model, ecs = pair
try:
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/'+model+'.nc').resample(time='1Y').mean('time').tas)
cmip5[model] = ts[:150]
except:
continue
cmip6 = {}
for pair in cmip6_schlund:
model, ecs = pair
try:
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/'+model+'.nc').resample(time='1Y').mean('time').tas)
cmip6[model] = ts[:450]
except:
continue
paleomodels = [
'bcc-csm1-1', 'CCSM4', 'CSIRO-Mk3L-1-2', 'FGOALS-gl',
'GISS-E2-R', 'HadCM3', 'IPSL-CM5A-LR', 'MIROC-ES2L',
'MPI-ESM-P', 'MRI-CGCM3', 'MRI-ESM2-0', 'CESM1-LME',
'CESM2', 'MPI-ESM1-2-LR', 'EC-Earth3-Veg-LR', 'MIROC-ESM',
'INM-CM4-8', 'ACCESS-ESM1-5'
]
df=pd.read_csv('data/ec_data.csv')
x=[]
y=[]
z=[]
model_names=[]
for model in paleomodels:
if model=='EC-Earth3-Veg-LR':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/EC-Earth3-Veg-LR.nc').resample(time='1Y').mean('time').tas)
x.append(compute_cox(ts))
y.append(float(df[df['model']==model]['rv_cox']))
z.append(float(df[df['model']==model]['ecs']))
model_names.append(model)
continue
if model=='CESM1-LME':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/CESM1-CAM5.nc').resample(time='1Y').mean('time').tas)
x.append(compute_cox(ts))
y.append(float(df[df['model']==model]['rv_cox']))
z.append(float(df[df['model']==model]['ecs']))
model_names.append(model)
continue
if model=='HadCM3':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/HadCM3.nc').resample(time='1Y').mean('time').tas)
x.append(compute_cox(ts))
y.append(float(df[df['model']==model]['rv_cox']))
z.append(float(df[df['model']==model]['ecs']))
model_names.append(model)
continue
try:
ts=cmip6[model]
x.append(compute_cox(ts))
y.append(float(df[df['model']==model]['rv_cox']))
z.append(float(df[df['model']==model]['ecs']))
model_names.append(model)
continue
except:
try:
ts=cmip5[model]
x.append(compute_cox(ts))
y.append(float(df[df['model']==model]['rv_cox']))
z.append(float(df[df['model']==model]['ecs']))
model_names.append(model)
continue
except:
continue
x2=[]
y2=[]
for model in paleomodels:
if model=='EC-Earth3-Veg-LR':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/EC-Earth3-Veg-LR.nc').resample(time='1Y').mean('time').tas)
x2.append(compute_nijsse(ts))
y2.append(float(df[df['model']==model]['rv_nijsse']))
continue
if model=='CESM1-LME':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/CESM1-CAM5.nc').resample(time='1Y').mean('time').tas)
x2.append(compute_nijsse(ts))
y2.append(float(df[df['model']==model]['rv_nijsse']))
continue
if model=='HadCM3':
ts=weighted_mean(xr.open_dataset('../../../pi_control_data/HadCM3.nc').resample(time='1Y').mean('time').tas)
x2.append(compute_nijsse(ts))
y2.append(float(df[df['model']==model]['rv_nijsse']))
continue
try:
ts=cmip6[model]
x2.append(compute_nijsse(ts))
y2.append(float(df[df['model']==model]['rv_nijsse']))
continue
except:
try:
ts=cmip5[model]
x2.append(compute_nijsse(ts))
y2.append(float(df[df['model']==model]['rv_nijsse']))
continue
except:
continue
model = model_names
# Create a figure with two subplots
# fig, axs = plt.subplots(1, 2, figsize=(15, 6), gridspec_kw={'wspace': 0.0})
fig, axs = plt.subplots(1, 2, figsize=(17, 7),)
# First subplot
scatter1 = axs[0].scatter(x, y, s=np.multiply(7, np.array(z)), c='blue', alpha=0.7)
slope, intercept, r_value, p_value, std_err = linregress(x, y)
correlation_info = f'r = {r_value:.2f}, p = {p_value:.2f}'
axs[0].annotate(correlation_info, (0.05, 0.95), xycoords='axes fraction').set_size(15)
axs[0].set_title('Comparison of $\psi$, piControl vs. past1000 Experiments')
axs[0].set_xlabel('$\psi$ in piControl experiment')
axs[0].set_ylabel('$\psi$ in past1000 experiment')
axs[0].set_xlim(0.05,0.15)
axs[0].set_ylim(0.09,0.26)
texts1 = [axs[0].text(x[i]-0.003, y[i]+0.005, model[i], ha='center', va='center', fontsize=9) for i in range(len(model))]
axs[0].grid(False)
# Second subplot
scatter2 = axs[1].scatter(x2, y2, s=np.multiply(7, np.array(z)), c='blue', alpha=0.7)
slope, intercept, r_value, p_value, std_err = linregress(x2, y2)
correlation_info = f'r = {r_value:.2f}, p = {p_value:.2f}'
axs[1].annotate(correlation_info, (0.05, 0.95), xycoords='axes fraction').set_size(15)
axs[1].set_title('Comparison of $\psi$, piControl vs. past1000 Experiments')
axs[1].set_xlabel('$\sigma_{b}$ in piControl experiment')
axs[1].set_ylabel('$\sigma_{b}$ in past1000 experiment')
axs[1].set_xlim(0.075,0.2)
axs[1].set_ylim(0.13,0.33)
texts2 = [axs[1].text(x2[i]-0.003, y2[i]+0.005, model[i], ha='center', va='center', fontsize=9) for i in range(len(model))]
axs[1].grid(False)
# Adjust layout and show the plot
plt.tight_layout()
plt.savefig('figures/figure_s6.png',dpi=1000)
